Arduino Nano Pinbelegung
 Arduino Nano Pinbelegung

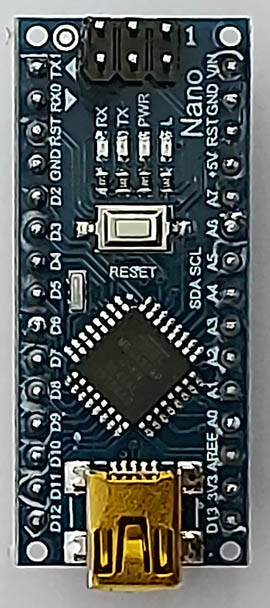

Pinbelegung:- D12 – Digital Pin 12, SPI-MISO
- D11 – Digital Pin 11, PWM, SPI- MOSI
- D10 – Digital Pin 10, PWM, SPI - SS
- D9 – Digital Pin 9, PWM
- D8 – Digital Pin 8
- D7 – Digital Pin 7
- D6 – Digital Pin 6, PWM
- D5 – Digital Pin 5, PWM
- D4 – Digital Pin 4
- D3 – Digital Pin 3, PWM
- D2 – Digital Pin 2
- GND – Masse
- RST - Reset
- RX 0 - Digital Pin 0, RX
- TX 1 - Digital Pin 1, TX
- Vin – Spannungsversorgung 7-12VDC
- GND – Masse
- RST – Reset
- +5V – 5V Output
- A7 – Analog Pin 7, Digital Pin 21
- A6 – Analog Pin 6, Digital Pin 20
- A5 – Analog Pin 5, Digital Pin 19, I2C - SCL
- A4 – Analog Pin4, Digital Pin 18, I2C - SDA
- A3 – Analog Pin 3, Digital Pin 17
- A2 – Analog Pin 2, Digital Pin 16
- A1 – Analog Pin 1, Digital Pin 15
- A0 – Analog Pin 0, Digital Pin 14
- AREF - Analog Referenz
- 3V3 – 3,3V Output
- D13 – Digital Pin 13, SPI SCK
